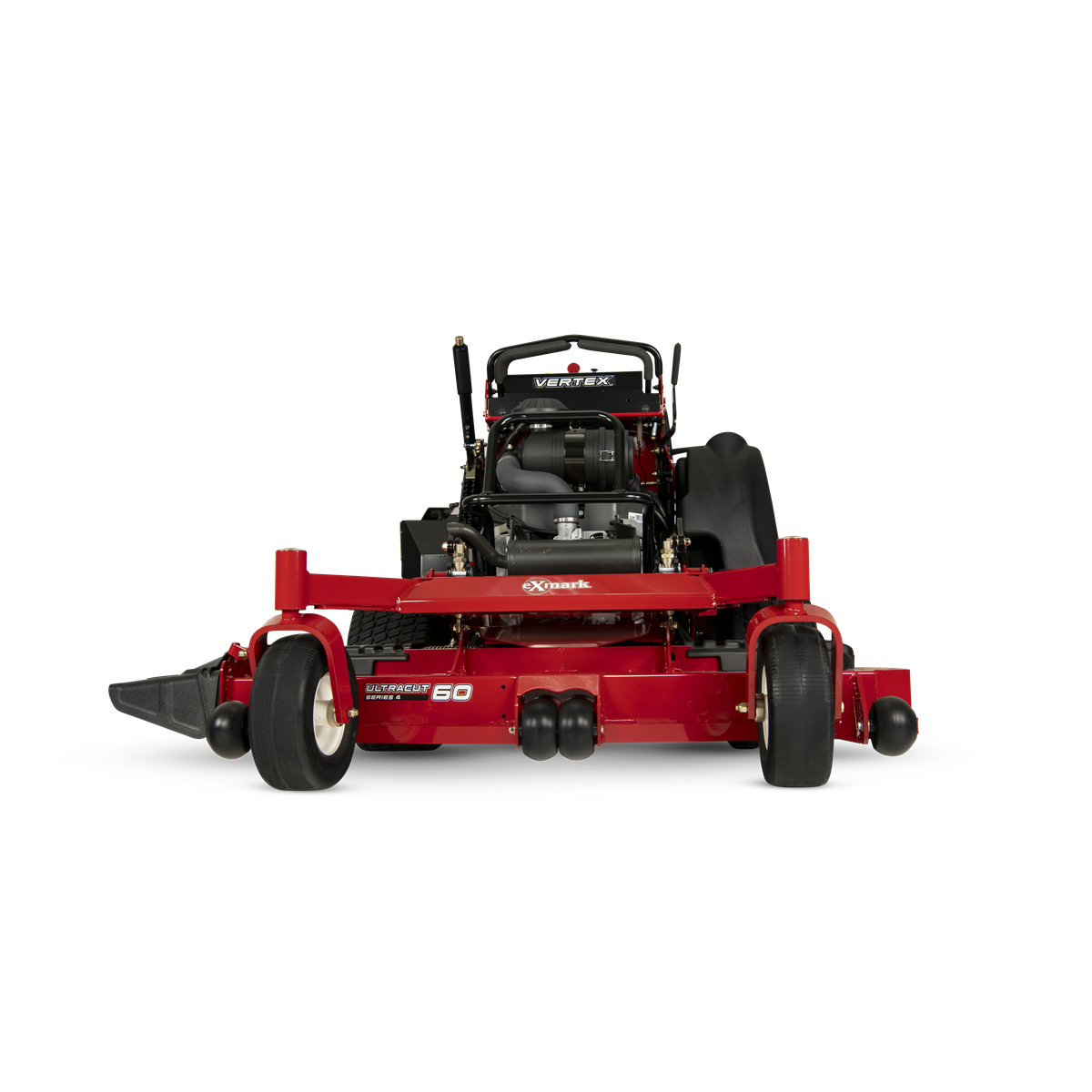

Exmark Vertex S-Series with 23.5 HP* Kawasaki FX730V Engine and 60″ UltraCut Series 4 Deck

$13,299.00*

*Prices subject to change. Please contact for latest pricing.

Contact us for price

Stock status: Call Store for Availability

The Vertex S-Series stand-on zero-turn mowers are ready to take your productivity and profitability to the next level. With a design that centralizes mass low in the mower chassis, Vertex is ultra-maneuverable, yet stable and easy to control. The control panel is ergonomically designed and centrally located to improve operator comfort. Exmark’s proven hydro drive system delivers ground speeds of up to 8.5mph, enabling Vertex to quickly finish large jobs. Built with a Kawasaki V-Twin or Kohler EFI engine to increase fuel efficiency so you can stay out in the field longer. Choose from 48-, 52-, or 60-inch UltraCut Series 4 side-discharge cutting decks, featuring easy rake adjustment and anti-scalp rollers, for an Exmark signature finish cut quality every time.Looking for a more compact stand-on mower? Check out the Vertex E-Series.

Call Us Now

Specs

UPC

193308221816

Starter

Electric

Steering Control

Twin levers with center fixed reference bar for ease of control forward and reverse

Front Caster Tires

13 x 5.0-6, smooth-tread, semipneumatic tires with tapered roller bearings.

Drive Tires

20x10.0-8 Carlisle Turf Master

Parking Brake

Lever-actuated bar brake.

Tractor Frame

Welded, heavy-duty 1.5" x 2.5" tubular steel.

Blade Spindles

No maintenance, sealed and nongreasable spindles; 7.75" diameter cutter housing with 1.75" diameter splined blade driver 1.0"-diameter spindle shaft.

Cup Holder

Yes

Electrical

12-volt battery with 15-amp alternator.

Standard Features

Enhanced Engine Hour Meter

Engine Brand

Kawasaki

Transmission Brand

Hydro-Gear

Transmission Speeds

Infinitely Variable

Engine Model

FX730V

Engine Displacement

725

Transmission

Hydrostatic

Engine Series

V-Twin

Fuel System

Carbureted

Speed

Infinitely variable speed selection 0–8.5 mph (x.x kmph) forward, 0–x.x mph (x.x kmph) reverse

Engine Speed

3,750 rpm

Air Filter

Heavy-duty canister air filtration system

Fuel Capacity

8-gallon (xx.x-L), single fuel tank on LH side.

Drive Description

Two Hydro-Gear 12 cc pumps powering two Parker 14.5 cubic inch motors.

Fuel Type

Gas Carbureted

PTO Engagement

Warner 175 ft-lb clutch

Drive System

HYDRO

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

Yes - Float Gauge

Deck Lift

Single point HOC; with mechanical lift-assist springs.

Carb Compliant

NO

Safety Package

Operator Presence Controls (OPC) with safety interlock system indicators

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.

Width / Cutting Deck

60"

Deck Construction

10-gauge top that is formed and continuously seam welded, 7-gauge side skirt

Cutting Heights

1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (0.64 cm) increments adjustable from operator’s platform.

Blade Tip Speed

Approximately 18,500 fpm.

Blades

3 Blades at 20.50" Length

Width

72.87

Height

49.2

Length

68.24

Curb Weight

978
