Specs
Engine
- Engine Brand Kawasaki®
- Engine Model FX Series EFI
- Engine Model Number 1000V
- Engine Displacement 999cc
- Engine Output 38.5HP
- Starter Type Electronic
- Fuel Tank Capacity Dual 7.45 gal. US (28.2 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 15 amp regulated
- Choke Auto-Choke

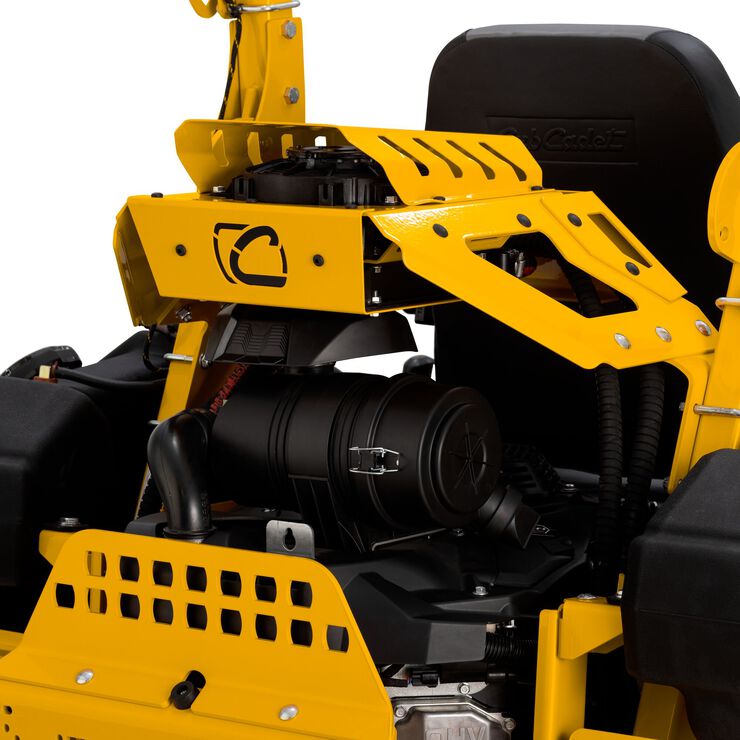

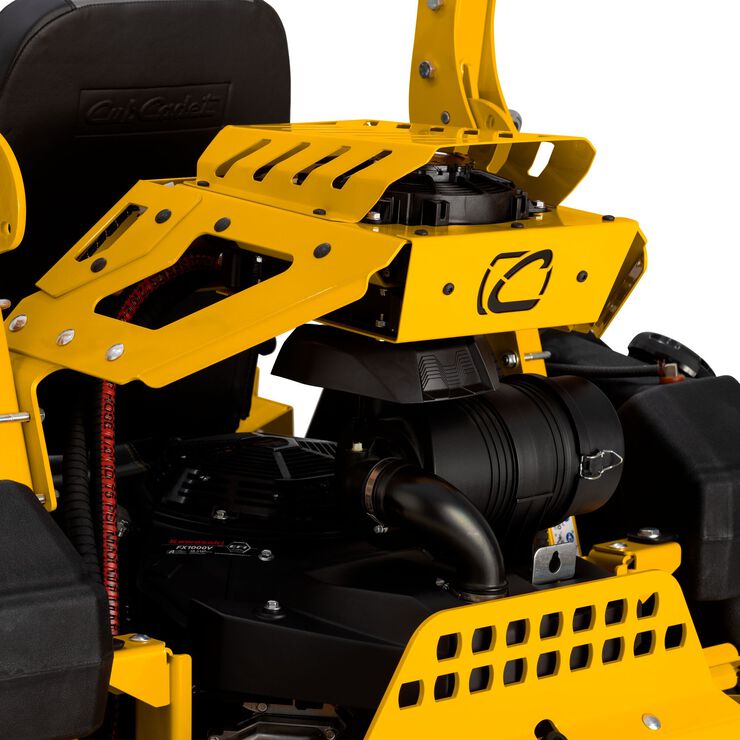

- Air Filter High Density
- Oil Filter Yes
- Fuel Delivery Electronic Fuel Injection (EFI)
Battery
- Battery 310CCA AGM battery; Relay/Fuse terminal block; 30 AMP voltage regulator
Drive System
- Transmission 16cc HTG Parker
- Forward Speed 14 mph / 22.5 km/h
- Reverse Speed 6 mph / 9.5 km/h
Cutting Deck
- Deck Cutting Width 72 in
- Deck Material triple-7-gauge fabricated steel
- Deck Engagement (PTO) Electronic with quick reset
- Deck Construction Floating, fabricated 7 ga (0.187") steel and adjustable rear striping rollers
- Spindle Construction Maintenance-free cast aluminum housing
- Blade(s) 3 high-lift Marbain® blades / 18,500 fpm (approx.)
- Deck Lift Electro-hydraulic assist quick-lift design
- Cutting Height Range 1” to 5” in 1/4” increments
- Anti-Scalping 4 front deck gauge wheels
- Deck Positions 16
Chassis
- Frame Fully welded, 3/8" x 5" laser-cut steel
- Front Axle 2" x 3" solid with Isolation dampening system, 1/2" thick steel
- ROPS 2" x 2" foldable 3-position with low profile

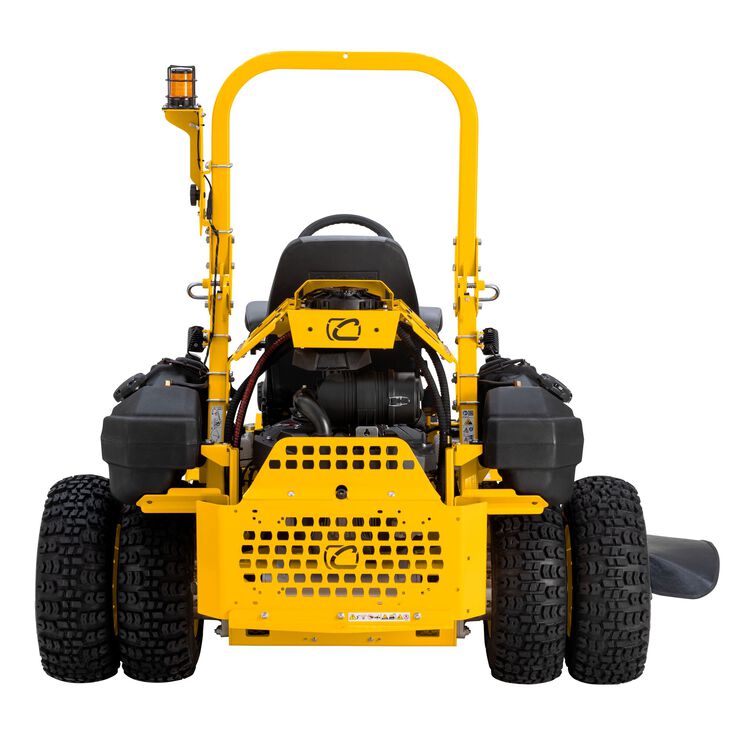

- Bumper 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
- Rear Tow Hitch Bolt-On hitch std.

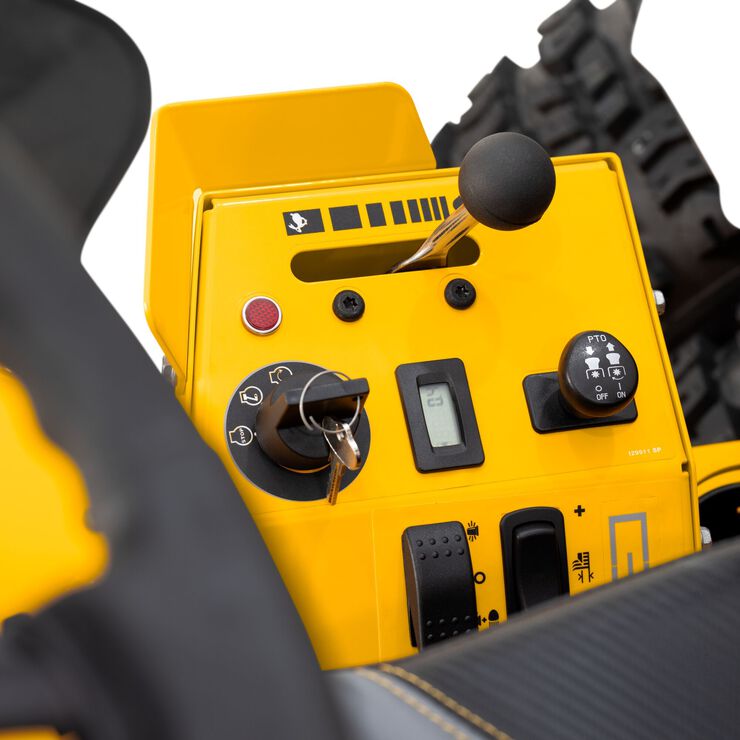

Controls
- Cruise Control NA
- Brakes Hand-operated lever with integrated hydro pump release lever

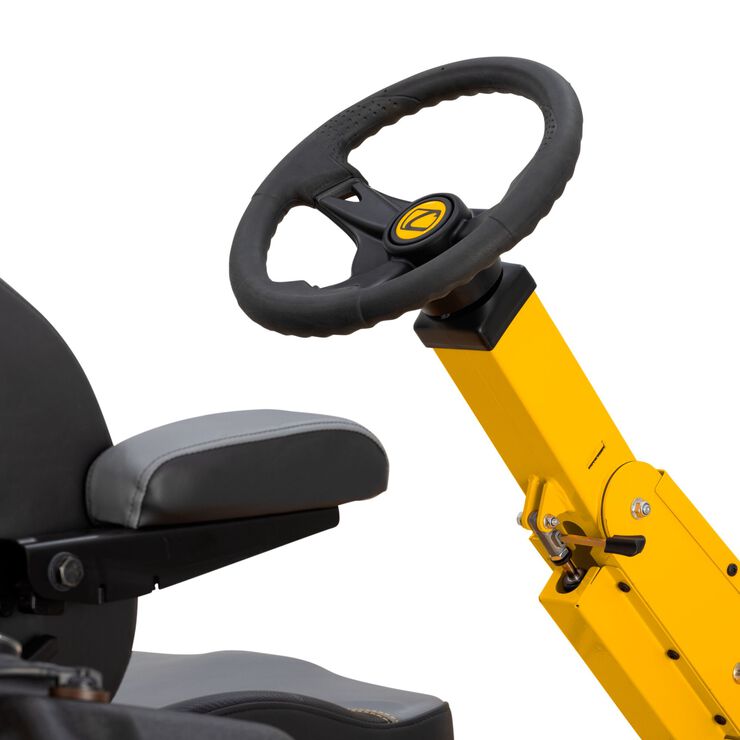

- Steering Control Quick-adjust steering column w/ power steering
- Operator Control Low-profile throttle lever
Comfort

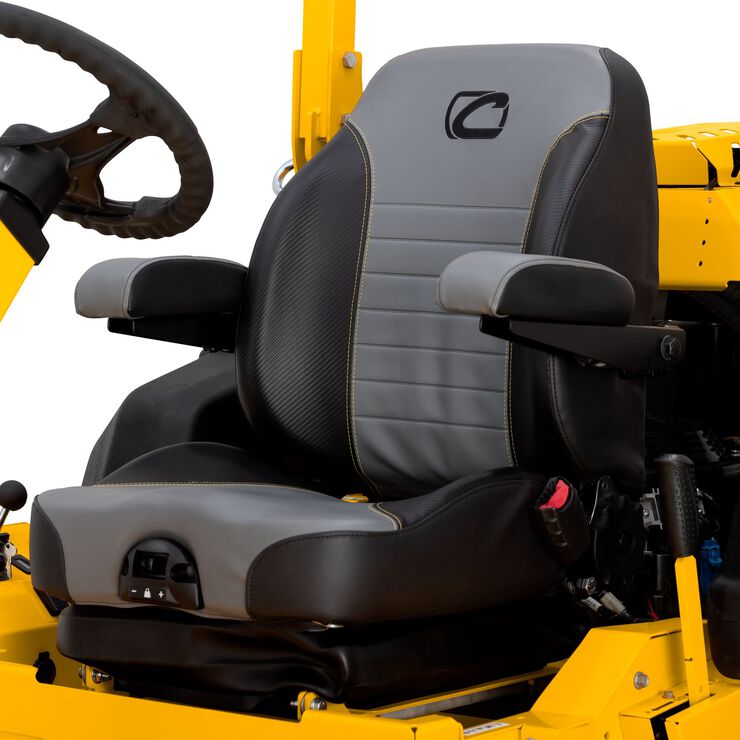

- Seat Type High-back air-ride suspension, EVC cushion, seat belt, angle-back adjust, lumbar support, padded armrests, isolation dampening system mounted base (lateral suspension)
- Seat Suspension side-to-side swivel/15 degrees of travel left or right
- Seat Control Swivel User-controlled lock/unlock swivel seat for operator leveling up to 30-degrees total/15-degrees left or right travel
Wheels
- Rear Tires 25"x9"-12" HD Traction Tread
- Front Tires 16"x6.5"-8"Kenda K505
- Tire Tread Heavy-Duty traction tread
Additional Specifications
- Hour Meter Crew Boss
- Headlight(s) 6 LED Lights for 360 degrees of lighted visibility; Amber Beacon with three position adjustments
- Cup Holder Intergrated into Side Pod
- Model Number 53FLLVUYA50
Warranty
- Commercial Warranty 3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Horsepower *As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
