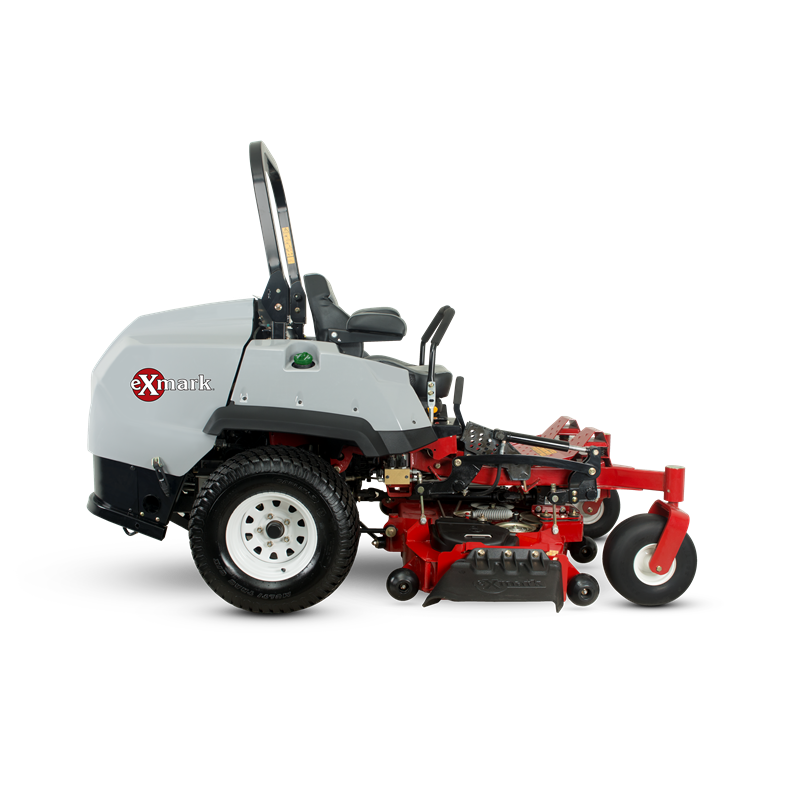

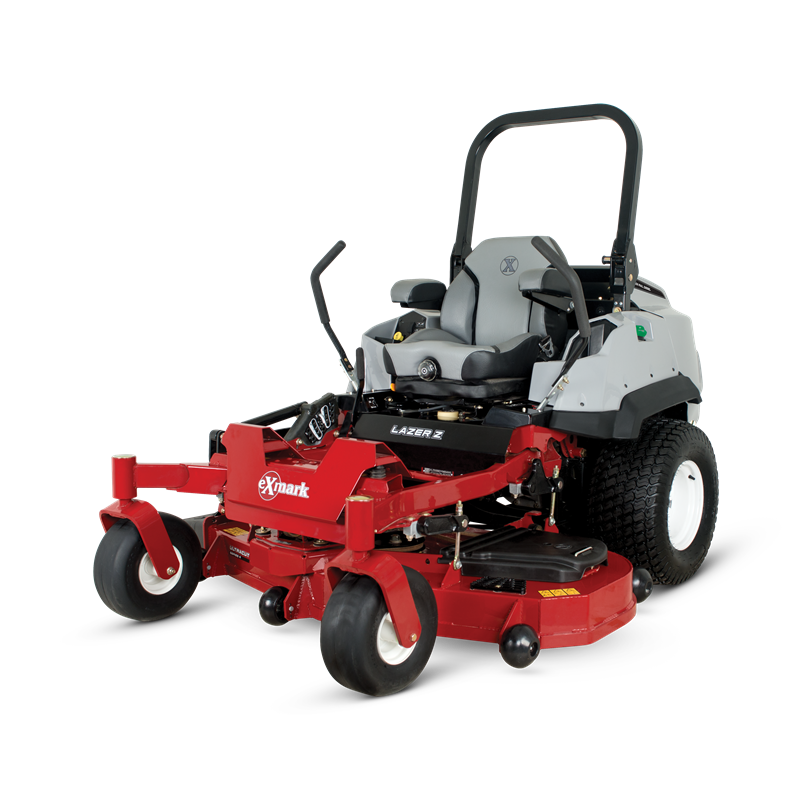

Exmark Lazer Z Diesel with 25 HP** Yanmar 3TNV80FT Diesel Engine and 60″ UltraCut Series 4 Deck

Contact us for price

Stock status: Call Store for Availability

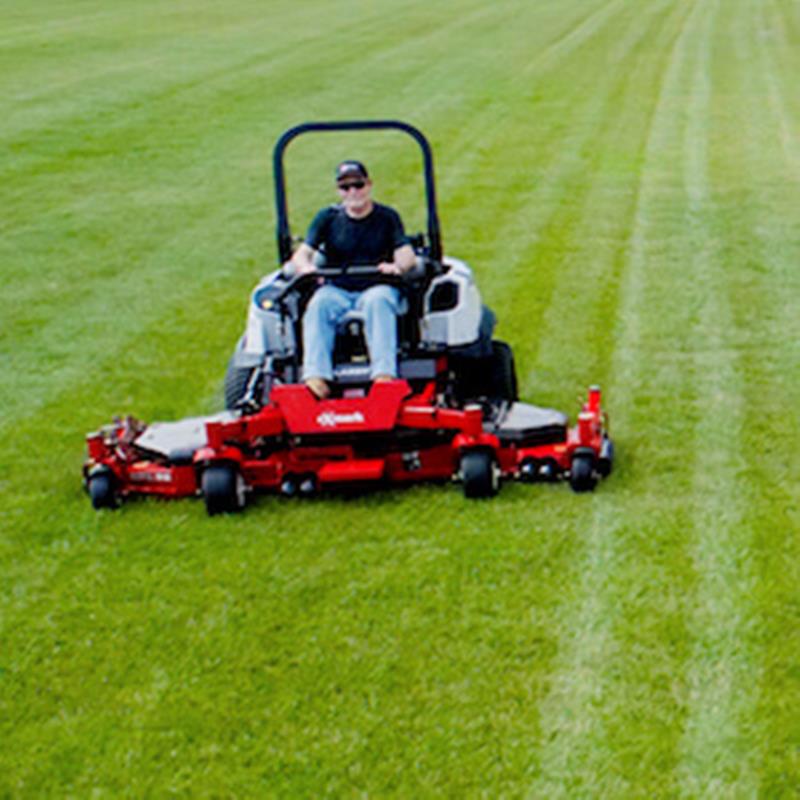

When maximum productivity, durability, and cut quality are your priorities, the new Exmark Lazer Z Diesel zero-turn mowers are the right choice. When equipped with the new industry-leading 144-inch UltraCut™ Flex Wing cutting deck, the Lazer Z Diesel can mow 11.5 acres per hour, making it the most productive mower Exmark has built. Powered by a cutting-edge Yanmar diesel engine, large drive tires allow you to reach ground speeds up to 12.5 MPH with the 96″ deck. The Lazer Z Diesel is also available with 60 and 72-inch UltraCut™ cutting decks. Delivering a high-quality cut, the flex wings on the 96-inch and 144-inch decks pivot 20-degrees up and 15-degrees down on sloping terrain.The Lazer Z Diesel zero-turn mower delivers unparalleled durability and precision maneuverability. So, if you’re looking for our top-of-the-line, most productive mower, the Lazer Z Diesel mower is the best option for you. But be sure to check out the rest of the Lazer Z lineup of zero-turn mowers.

Call Us Now

Specs

UPC

193308000770

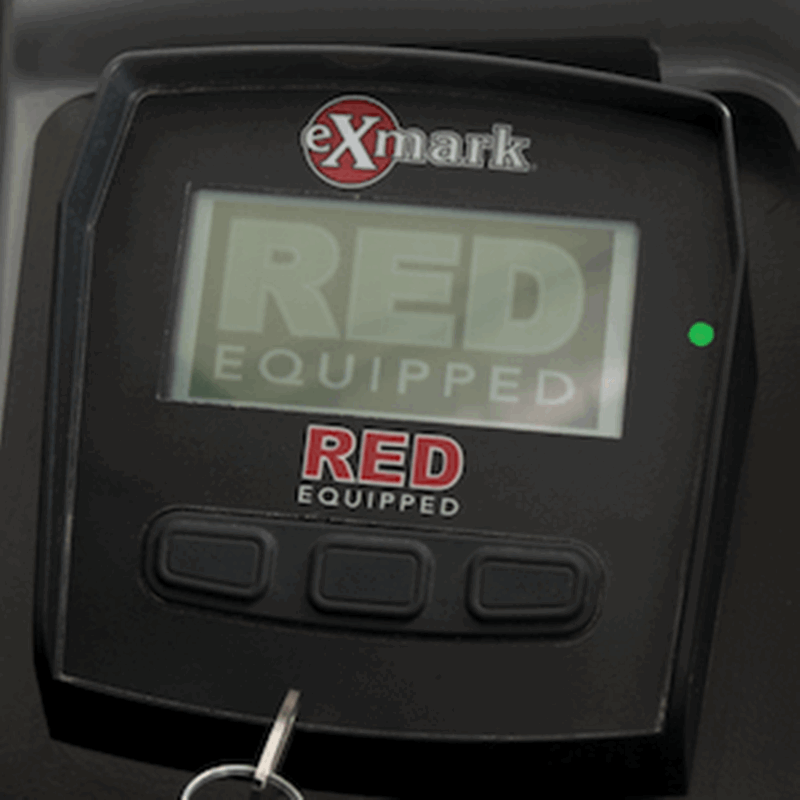

Onboard Intelligence

RED Technology

Starter

Electric

Steering Control

Hydraulically dampened twin levers, adjust fore and aft., also adjustable to 2 height positions. Adjustable dampeners (3 positions) to customize drive responsiveness.

Caster Forks

.50" thick caster yoke arms.

Front Caster Tires

15 x 6.0-6, smooth-tread, semi-pneumatic.

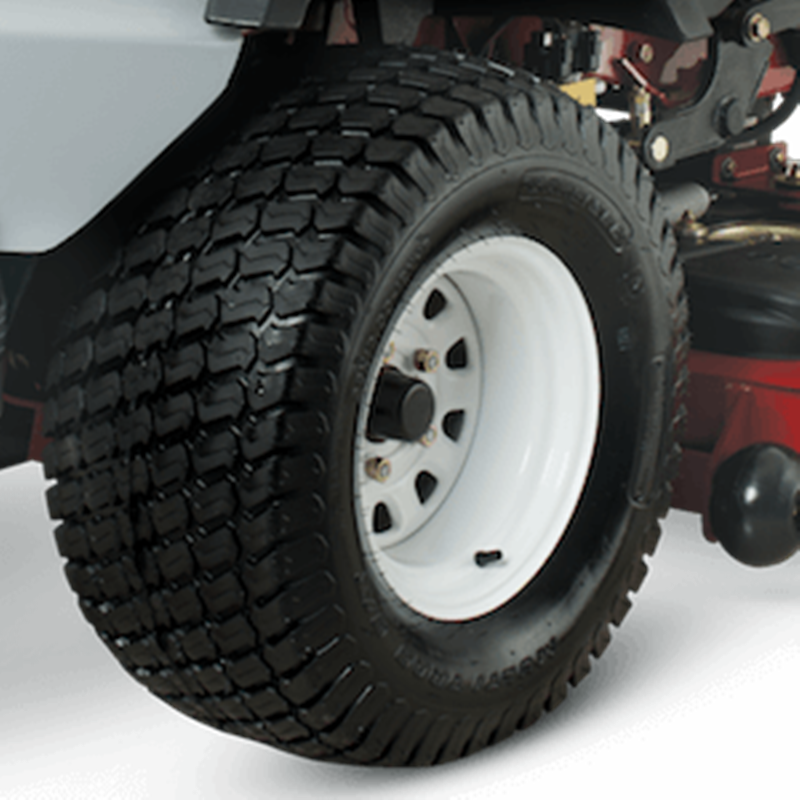

Drive Tires

26x12-12, 6ply

Parking Brake

Lever-actuated internal wet disc brake.

Tractor Frame

Welded, heavy-duty 1.5" x 3" x 3/16" tubular steel.

Blade Spindles

No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft, double row bearings, top and bottom, and splined blade driver.

Electrical

12-volt battery with 55-amp alternator.

Standard Features

12-volt plug-in, engine hour meter and cup holder

Seat

Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.

Engine Brand

YANMAR

Transmission Speeds

Infinitely Variable

Engine Model

3TNV80FT

Engine Displacement

1267

Transmission

Hydrostatic

Engine Series

TNV

Fuel System

Electronically Governed IDI Turbo Diesel

Speed

Infinitely variable speed selection from 0–11.0 mph (18 kmph) forward, 0–6 mph (10 kmph) reverse.

Drive

Hydro-Drive

Engine Spec

ZMTR1

Engine Speed

2,600 RPM

Air Filter

Heavy-duty canister air filtration system with electronic vacuum sensor

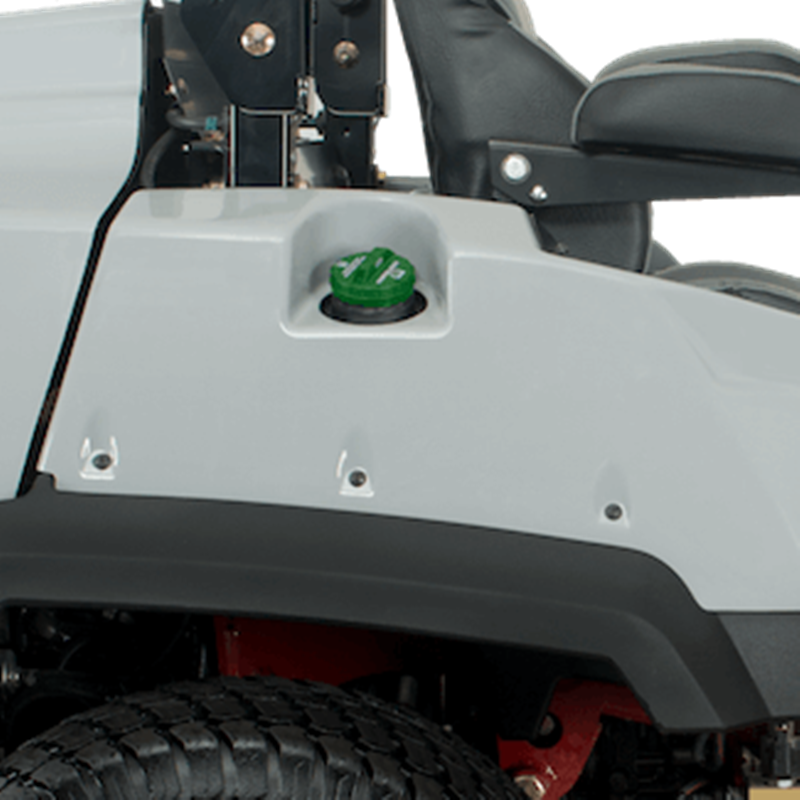

Fuel Capacity

12-gallon (45.4-L), side fuel tanks

Drive Description

Kanzaki KPS-18T Transmission, 16-quart oil capacity, spin-on filter. 18 cc shoe type pumps and 17.84 cubic inch Hydro-Gear HGM-18 motors, hydraulic oil cooler.

Fuel Type

Diesel

PTO Engagement

Integrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

Yes - mechanical float type

Deck Lift

Hydraulic

Carb Compliant

Yes

Safety Package

Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.

ROPS

2-post foldable ROPS standard with seat belt and latch.

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.

Width / Cutting Deck

60"

Deck Construction

10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge reinforced spindle mounting locations for improved strength and reduced weight.

Cutting Heights

1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat.

Blade Tip Speed

Approximately 17,600 fpm

Blades

3 Blades at 20.50" Length

Width

72.8 in. (184.9 cm)

Height

71.8 in. (182.4 cm)

Length

96.43 in. (244.9 cm)

Curb Weight

1915
