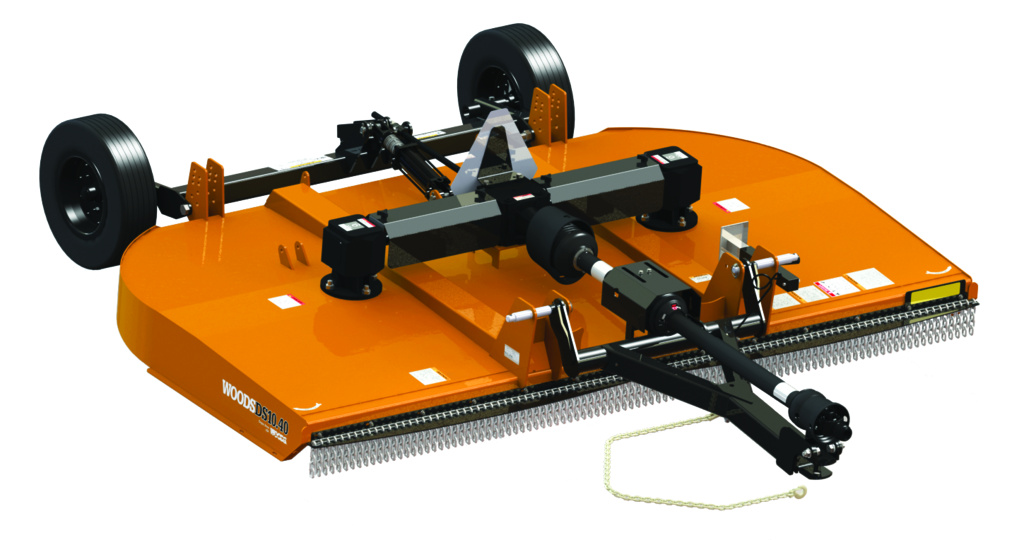

Woods DS10.40

Contact us for price

Stock status: Call Store for Availability

Professional

Easy Connection

Engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.

Easy Maintenance

EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.

Unmatched Gearbox PROTECTION

10-year warranty including parts, labor, and seals. Gearbox also features Woods Exclusive Cool-Flow™ Lubrication System and  Triple Seal™ Gearbox Protection. See how it works.

Call Us Now

Specs

Product TierProfessional
Tractor PTO (Minimum HD)40
Tractor PTO Speed (rpm)540
Hitchpivoting clevis
Hydraulic Variable OffsetN/A
Cutting Width (in)120
Cutting Capacity Diameter (in)2
Adjustable Cutting Height (in)2 – 12
Blade Tip Speed (fpm)16,700
Blade Size (in).5 x 4
Deck Side Depth | Thickness (in)10 deep, .135 thick
Weight (lbs)1,820
Wheel SelectionLaminated, severe-duty new ag; foam filled new ag, 15″ rims
Gearbox Rating120 center, 90 spindle *Gearbox horsepower ratings listed are based on field testing.
Optional Dual-WheelsNo
Driveline w/Slip ClutchCAT 4 CV
Quick-hitch CompatibleYes
Gearbox Warranty10 years
Structure Warranty2 years
