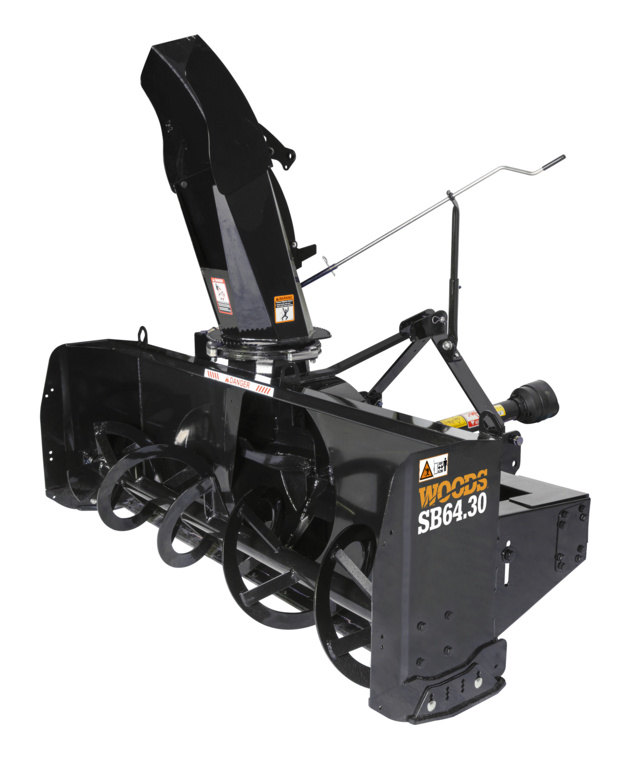

Woods SB64.30

Contact us for price

Stock status: Call Store for Availability

Woods snow blowers easily handle even the most daunting snow applications, because they are designed with heavy-duty, reinforced and dynamically balanced components that allow the equipment to run smoother and last longer in challenging rural applications.

  • Dynamically balanced auger and impeller for less vibration
  • Heavy-duty reinforced housing to withstand hard impacts
  • Shear bolt protection on driveline for processing heavy snow
  • Backed by a 6-year gearbox warranty under the industry-leading Woods Cut Above™ Warranty Program
  • Chain drive for easy access to bearing and shear bolt, and servicing chain drive
  • Skid shoe protects the frame and prevents wear. Replaceable and adjustable for height
  • Stand positions your snow blower for easier tractor connection
  • Mechanical or hydraulic chute adjustment allows for easy repositioning of the chute
  • Quick-hitch ready from the factory making for easier tractor hook up
Call Us Now

Specs

Tractor PTO HP

20-40

Hitch Category

CAT 1

Operating Weight; including chute & hydraulic deflector (lbs)

540

Working Width (in)

63 1/2

Working Height (in)

27 1/2

Overall Width (in)

64 3/4

Overall Length (in)

37 3/4

Impeller Diameter (in)

24

Impeller Width (in)

7

Impeller (rpm)

540

Main Auger Diameter (in)

15

Auger Driven System

Chain No. 60

Auger (rpm)

170

Chute Rotation

Manual or Hydraulic

Replaceable and Reversible

Yes

Cutting Edge Dimension (in)

3/8 x 1 1/2

Main Driving System

Driveline Series 40

Chain Idler

Yes

Parking Stand

Yes

Number of Auger Shear Bolt

1 (on drive shaft)

Number of Impeller Shear Bolt

1 (on driveline)

Type of Hitch

3 pts. , CAT 1

Quick Hitch Compatible

Yes

Gearbox Warranty

6-years Includes Seals
