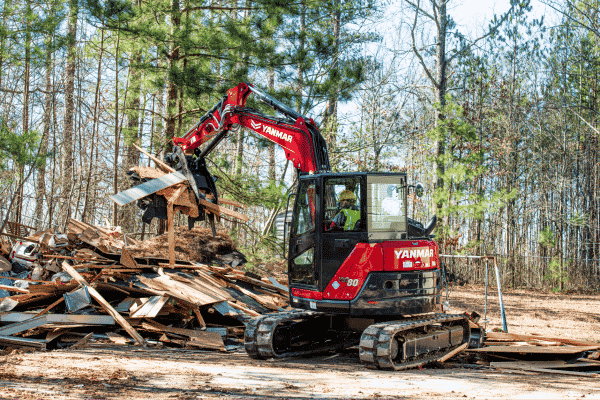

YANMAR Mini Excavator ViO80-1A

Contact us for price

Stock status: Call Store for Availability

Working efficiently means you’re working smarter, not harder. And having the right mini excavator for the job not only means the job will be done right, but it will also be done quicker. When you need a mini excavator with big time capability and our legendary tight space maneuverability, look no further than the Vi080-1A – our biggest zero tail swing mini excavator. Packed with performance, you can work with confidence against buildings, retaining walls or in narrowed single lane traffic situations. Add to this tight-space mastery, our legendary toughness, the added efficiency of auto-shifting two-speed travel, and dual auxiliary control circuits with flow control and you’ll see both your confidence and bottom line grow.

Call Us Now

Specs

Engine

This div for css purpose only
Model
YANMAR 4TNV98CT-WBV
YANMAR 4TNV98CT-WBV
This div for css purpose only
Output
56.9 HP
42.4 / 2,400 kW/rpm
This div for css purpose only
Type
Water-cooled 4-cylinder diesel
Water-cooled 4-cylinder diesel

Operating Weight

Rubber Track
18,136 lbs
8.23 t
Steel Track
18,268 lbs
8.29 t

Performance

Max Digging Force, Bucket / Arm
11,332 / 8,356 lbs
63.5* / 40.8* (*without quick coupler)
Traveling Speed, High / Low
Rubber Track: 2.8 / 1.6 MPH; Steel Track: 2.6 / 1.4 MPH
Rubber Track: 4.5 / 2.5 km/h; Steel Track: 4.1 / 2.3 km/h
Swing Speed
9 RPM
9 RPM
Boom Swing Angle, (L / R)
57° / 60°
57° / 60°

Ground Contact Pressure

Rubber Track Cab. Rubber Track
5.2 PSI
35.8 kPa
Rubber Track Cab. Steel Track
5.25 PSI
36.2 kPa

Hydraulic System

Pump Capacity
18.6 x 2 + 14.1 + 5.0 GPM
70.3 x 2 + 53.2 + 19.0 L / min
Main Relief Set Pressure
3,698 x 2 + 3,481 + 421 PSI
25.5 x 2 + 24.0 + 2.9 MPa

Blade Dimensions

This div for css purpose only
Width
7’5″
2,260 mm
This div for css purpose only
Stroke, Raise / Lower from G.L. – Cab. Rubber Track
1’6″ / 1’7″
460mm / 480mm
This div for css purpose only
Stroke, Raise / Lower from G.L. – Cab. Steel Track
1’5″ / 1’8″
440mm / 500mm

Fuel Tank

This div for css purpose only
Capacity
30.4 Gals
115 L
