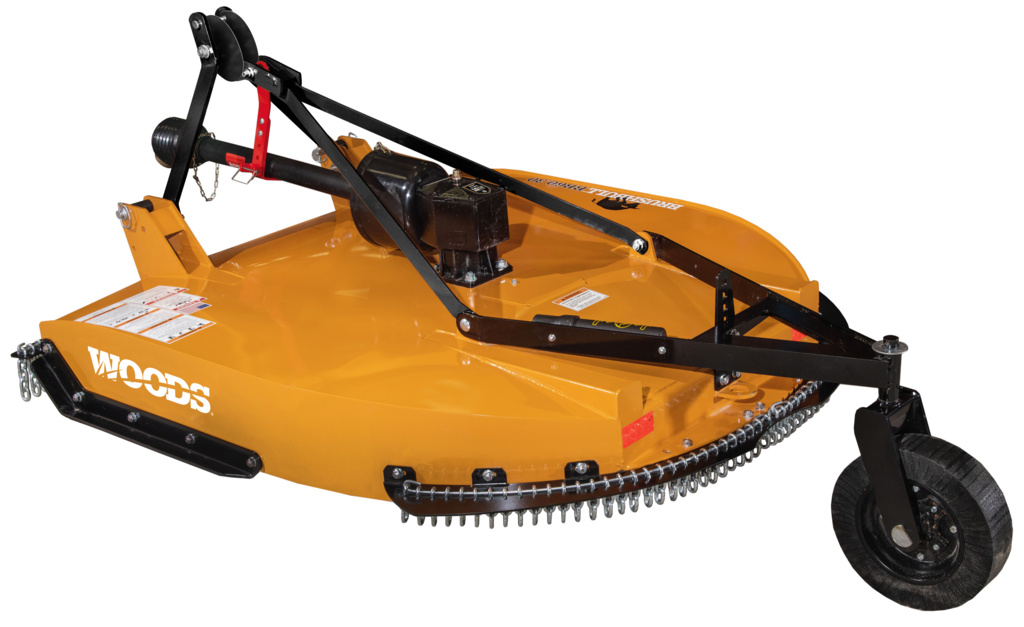

Woods BB60.50

Contact us for price

Stock status: Call Store for Availability

  • Three-point hitch: CAT 1 & 2, quick-hitch ready
  • Cuts brush up to three inches in diameter
  • Six-year limited gearbox warranty includes the seals
  • 12.7 inches deep, with half-inch by four-inch blades, and rear baffling that work together to evenly cut and distribute large amounts of material, for a superior cut quality
  • Comes standard with adjustable driveline hanger making it easier to attach
  • Greasable Quick-change blade pins are easy to maintain and remove from top of the deck through large blade access window
  • High-strength steel bumper with a Z-channel frame for added durability when backing over tough brush
  • NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
Call Us Now

Specs

Tractor PTO HP

30-150

Tractor Hitch

CAT 1 and 2 clevis

Cutting Height Range (in)

2 to 12

Cutting Capacity Diameter (in)

3

Cutting Width (in)

60

Blade Tip Speed (fpm)

15,525

Weight (lbs)

975

Deck Thickness (in)

.135 (10 ga)

Side Frame Thickness (in)

0.25

Side Frame Depth (in)

12.7

Transport Width (in)

67.3

Output Shaft Diameter (in)

2

Gearbox Warranty

6 year limited

Overall Length (in)

100

Deck Construction

Smooth top, sloped

Gearbox HP

150 *Gearbox horsepower ratings listed are based on field testing.

Blade Dimensions (in)

1/2 x 4

Frame and Deck Support (in)

3 x 3 tube

Tractor PTO Speed (rpm)

540

Quick-hitch Compatible

Yes

Blade Carrier

Diamond stump jumper, optional round

Driveline Protection

Slip-clutch

Skid Shoes

Full-length, replaceable

Rear Bumper

Z-channel

Options

Rubber belting/steel band or chain shielding; check chains, round stump jumper
