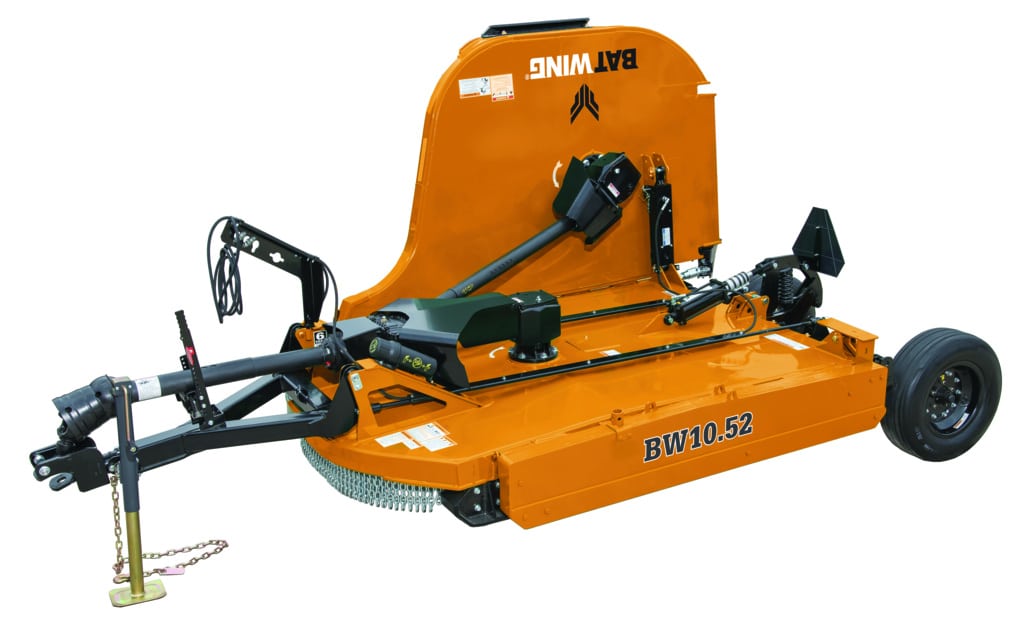

Woods BW10.52

Contact us for price

Stock status: Call Store for Availability

Professional

#1 In Cut Quality

Enabled by deep cutting decks, high-lift blades, and new features like Woods Exclusive Level Lock™ Technology that ensures a more level cut height across rugged terrain.
Read Cut Quality Study.

Easy Maintenance

EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.

Easy Connection

The Woods Exclusive Smartlift™ System holds holds your 80lb PTO driveline allowing you to easily connect and disconnect from the tractor.

Unmatched Gearbox PROTECTION

10-year warranty including parts, labor, and seals.

Call Us Now

Specs

Product Tier Professional
Tractor PTO HP 45-200
Tractor PTO (rpm) 540 or 1,000
Hitch Type Swivel clevis hitch
Adjustable Cutting Height (in) 15-Feb
Cutting Capacity Diameter (in) 3
Cutting Width (ft) 10
Cutting Area Shielding Single or Double Chain
Blade Tip Speed (fpm) 15,526 (wing), 15,904 (center) at 540 rpm 15,708 (wing), 15,422 (center) at 1,000 rpm
Blade Size (in) .5 x 4
Weight; varies with tires and options (lbs) 3,950-4,725
Tongue Weight (lbs) 1,935
Transport Width (in) 93
Hydraulics Wing Flex (degrees) 90 up, 22 down
Side Skirt (in) .25 thick x 13 deep
Stump Jumper Type Oval
Deck Thickness (in) 0.135
Wheel Type 21 in. laminated; 25 in. severe-duty Ag; 29 in. used aircraft foam-filled options for severe-duty Ag and used aircraft
Driveline Rating CAT 6 CV main, CAT 4 wing
Gearbox Rating (hp) 210 splitter / 200 center and wing
Gearbox Warranty (yrs) 10
Output Shaft Size (in) 2 dia
Options Double row chain shielding, Dual wheels, Towing Eye
Structure Warranty 2 years
