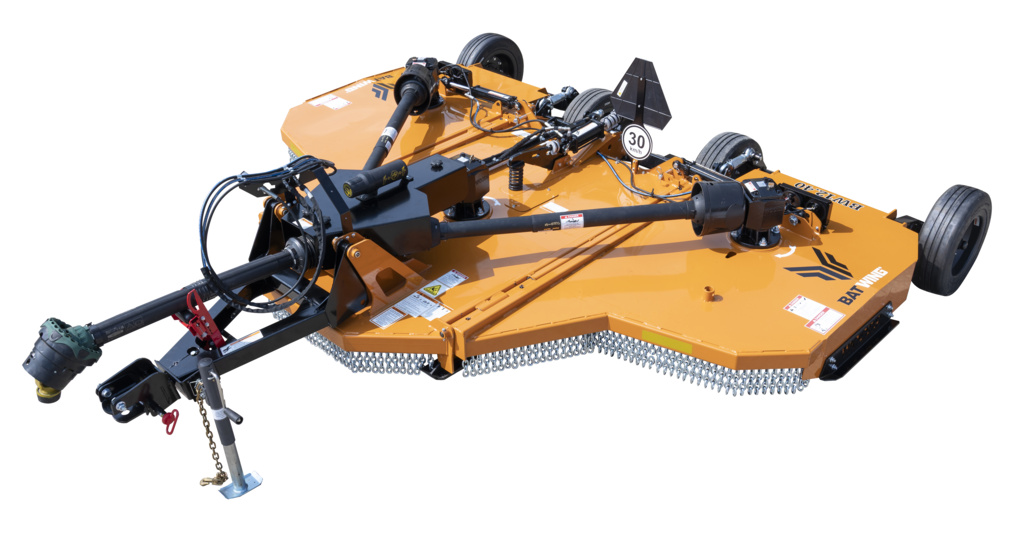

Woods BW12.40

Woods BW12.40

Contact us for price

Stock status: Call Store for Availability

Professional

#1 In Cut Quality

Enabled by deep cutting decks, high-lift blades and our exclusive baffling design. Read Study
*Rated #1 in cut quality by rotary cutter owners and operators in a double-blind study of major brands in the category.

Easy Maintenance

EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required. A large blade access window at the top of the deck let’s you easily access blades for simple maintenance. Features our new shimless and greaseable design.

Easy Connection

The Woods Exclusive Smartlift™ System holds your 80lb PTO driveline allowing you to easily connect and disconnect from the tractor.

Unmatched Gearbox PROTECTION

10-year gearbox warranty including parts, labor, and seals. Woods Exclusive Triple Seal™ Gearbox Protection and Cool-Flow™ Lubrication System to cool the gearbox, prevent leaks, and reduce downtime. See how it works.

Call Us Now

Specs

Product Tier

Professional
Tractor PTO HP

40-120
Adjustable Cutting Height (in)

2 to 12
Cutting Capacity Diameter (in)

2.5
Cutting Width (ft)

12
Blade Tip Speed (fpm)

15,523 center / 15,459 wing
Blade Size (in)

.5 x 4
Weight / Tongue Weight (lbs)

3,050 / 1,055
Transport Width (in)

101
Hydraulics Wing Flex (degrees)

90 up, 22 down
Side Skirt (in)

11 deep, 7 ga thick
Stump Jumper Type

Oval
Deck Thickness (in)

10 ga
Wheel Type

21 inch laminated, 21 inch Severe-duty ag, 21 inch Severe-duty ag foam-filled,
25.5 inch Severe-duty ag, 25.5 inch Severe-duty ag foam-filled
Suspension

Spring on center section
Driveline Rating

CAT 4 CV main, CAT 4 wing
Gearbox Rating (HP)

160 splitter / 100 center and wing
Output Shaft Size (in)

2
Structure Warranty

2 years
Gearbox Warranty (yrs)

10
Options

Dual-wheels on center deck
