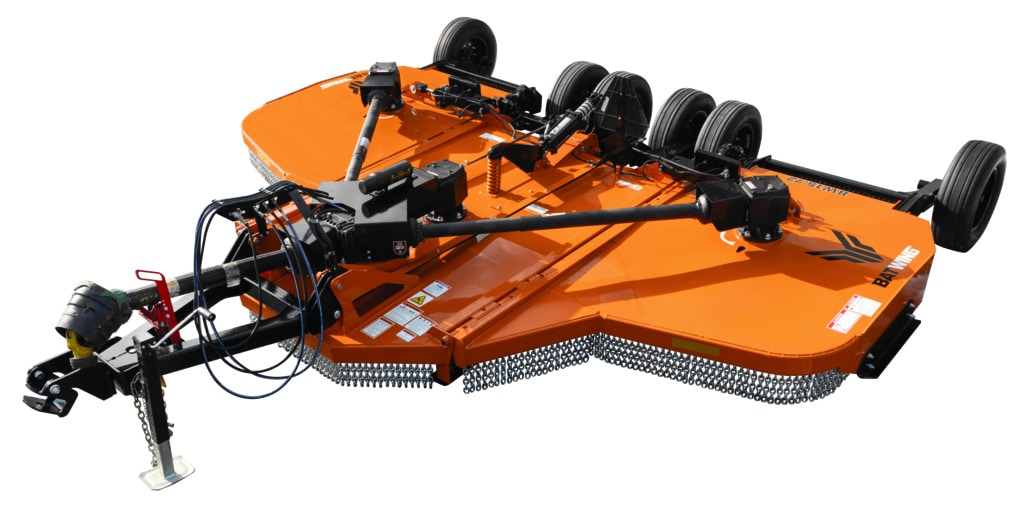

Woods BW15.72

Woods BW15.72

Contact us for price

Stock status: Call Store for Availability

Extra Heavy-Duty

The model is available in our 80 Year Anniversary Limited Edition Matte Black

#1 In Cut Quality

Enabled by deep cutting decks, high-lift blades, and new features like Woods Exclusive Level Lock™ Technology that ensures a more level cut height across rugged terrain.
Read Cut Quality Study.

Easy Maintenance

EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.

Easy Connection

The Woods Exclusive Smartlift™ System holds holds your 80lb PTO driveline allowing you to easily connect and disconnect from the tractor.

Unmatched Gearbox PROTECTION

10-year warranty including parts, labor, and seals. Gearbox also features Woods Exclusive Cool-Flow™ Lubrication System and  Triple Seal™ Gearbox Protection. See how it works.

Call Us Now

Specs

Product TierExtra Heavy-Duty
Tractor PTO HP65-300
Tractor PTO (rpm)540 or 1,000
Hitch TypeSwivel clevis hitch
Adjustable Cutting Height (in)2 to 15
Cutting Capacity Diameter (in)4.5
Cutting Width (ft)15
Cutting Area ShieldingSingle or Double Chain
Blade Tip Speed (fpm)15,526 (wing), 16,286 (center) at 540 rpm 15,708 (wing), 16,132 (center) at 1,000 rpm
Blade Size (in).5 x 4
Blade Overlap (in)6
Weight/Tongue Weight (lbs)5,635/2,410
Transport Width (in)96
Hydraulics Wing Flex (degrees)90 up, 22 down
Side Skirt (in).25 thick x 13 deep
Stump Jumper TypeRound
Deck Thickness (in)0.18
Wheel Type21 in. laminated, 25 in. severe-duty Ag, 25 in. severe-duty Ag foam-filled, 27 in. severe-duty Ag foam-filled, 29 in. used aircraft
Driveline RatingCAT 6 CV main, CAT 5 wing
Gearbox Rating (hp)275 splitter / 225 center and wing
Gearbox Warranty (yrs)10
Output Shaft Size (in)3 dia
OptionsDouble row chain shielding, Dual wheels, Towing Eye, Walking Tandems, Shredding Kit
Structure Warranty2 years
